WPF 多路径动画描绘轨迹生成几何图形动画

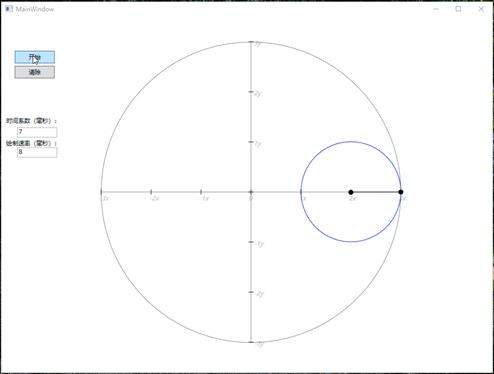

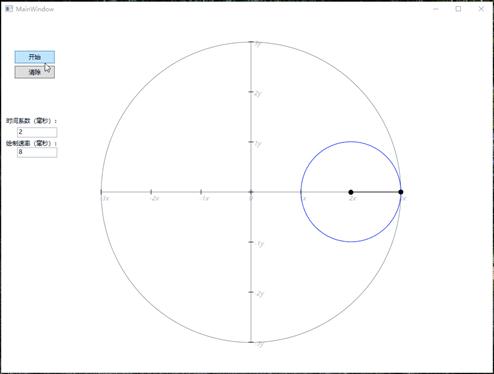

按照轨迹描绘做出几何图像。参照此类方式可制作多种动态数学几何图形。

代码均为后台代码，可加强对path、storyboard等知识的学习理解。

代码可以优化，如有错误自行修正。

public void Draw_Init(Canvas obj)
        {
            Canvas box_view = new Canvas()
            {
                Width = 800,
                Height = 600,
            };
            Canvas.SetLeft(box_view, 100);
            Canvas.SetTop(box_view,50);
            obj.Children.Add(box_view);

            Draw_Line(box_view, new Point(100, 300), new Point(700, 300), Colors.LightSlateGray, 1);
            Draw_Line(box_view, new Point(400, 0), new Point(400,600), Colors.LightSlateGray, 1);

            for (int i = 0; i < 7; i  )
            {
                Draw_Line(obj, new Point(200   i * 100, 350 - 5), new Point(200   i * 100, 350   5), Colors.Black, 1);
                Draw_Line(obj, new Point(495, 50 i * 100), new Point(505, 50 i * 100), Colors.Black, 1);

                string nx = (i-3) != 0 ? (i-3)   "x" : "0";
                string ny = (3-i) != 0 ? (3-i)   "y" : "";

                TextBlock num_x = new TextBlock()
                {
                    FontSize = 12,
                    FontWeight = FontWeights.Bold,
                    FontStyle = FontStyles.Oblique,
                    Text = nx,
                    Opacity = 0.2
                };
                Canvas.SetLeft(num_x, 195   i * 100);
                Canvas.SetTop(num_x,355);
                obj.Children.Add(num_x);

                TextBlock num_y = new TextBlock()
                {
                    FontSize = 12,
                    FontWeight = FontWeights.Bold,
                    FontStyle = FontStyles.Oblique,
                    Text = ny,
                    Opacity = 0.2
                };
                Canvas.SetLeft(num_y, 505);
                Canvas.SetTop(num_y, 45 i*100);
                obj.Children.Add(num_y);
            }
            obj.Children.Add(polyline);

            Path path_border = new Path()
            {
                Stroke = Brushes.LightSlateGray,
                StrokeThickness = 1,
                Data = Geometry.Parse("M 0,0 A 300,300 45 1 1 0,1 Z")
            };
            Canvas.SetLeft(path_border, 100);
            Canvas.SetTop(path_border, 300);
            box_view.Children.Add(path_border);
            Path path_box = new Path()
            {
                StrokeThickness = 1,
                Data = Geometry.Parse("M 0,0 A 200,200 45 1 0 0,1 Z")
            };

            Canvas.SetLeft(path_box, 600);
            Canvas.SetTop(path_box, 300);
            box_view.Children.Add(path_box);

            Canvas move_block = new Canvas()
            {
                Width = 100,
                Height = 100
            };
            Canvas.SetLeft(move_block, 150);
            Canvas.SetTop(move_block, 250);
            box_view.Children.Add(move_block);

            Path arc_centre = new Path()
            {
                Fill = Brushes.Black,
                Data = Geometry.Parse("M 0, 0 A 5, 5 45 1 1 0, 1 Z")
            };
            Canvas.SetLeft(arc_centre, 445);
            Canvas.SetTop(arc_centre,50);
            move_block.Children.Add(arc_centre);

            Path arc_move = new Path()
            {
                Fill = Brushes.Black
            };
            EllipseGeometry arc_elips = new EllipseGeometry()
            {
                Center = new Point(200,50),
                RadiusX = 5,
                RadiusY = 5,
            };
            arc_move.Data = arc_elips;
            Canvas.SetLeft(arc_move, 350);
            Canvas.SetTop(arc_move, 0);
            obj.RegisterName("Arc_Move", arc_elips);
            move_block.Children.Add(arc_move);

            Path path_center = new Path()
            {
                Stroke = Brushes.Blue,
                StrokeThickness = 1,
                Data = Geometry.Parse("M 200,50 A 100,100 45 1 1 200,49 Z")
            };
            Canvas.SetLeft(path_center, 350);
            Canvas.SetTop(path_center,0);
            move_block.Children.Add(path_center);

            translate = new TranslateTransform()
            {
                X = 0,
                Y = 0
            };
            obj.RegisterName("MyTranslateTransform", translate);
            TransformGroup group = new TransformGroup();
            group.Children.Add(translate);

            move_block.RenderTransform = group;
            story_x = new Storyboard();
            story_y = new Storyboard();
            PathGeometry geometry = new PathGeometry()
            {
                Figures = PathFigureCollection.Parse("M 0,0 A 200,200 45 1 0 0,1 Z")
            };
            Set_AnimationPath(geometry, "MyTranslateTransform", "X", PathAnimationSource.X, story_x);
            Set_AnimationPath(geometry, "MyTranslateTransform", "Y", PathAnimationSource.Y, story_y);

            line = new LineGeometry()
            {
                StartPoint = new Point(100, 50), EndPoint = new Point(200,50)
            };
            Path path_line = new Path()
            {
                Stroke = Brushes.Black,
                StrokeThickness = 1,
                Data = line
            };
            Canvas.SetLeft(path_line, 350);
            Canvas.SetTop(path_line,0);
            obj.RegisterName("Line_Move", line);
            move_block.Children.Add(path_line);

            story_circle = new Storyboard();
            story_arc = new Storyboard();
            PathGeometry pathGeometry = new PathGeometry()
            {
                Figures = PathFigureCollection.Parse("M 200,50 A 100,100 45 1 1 200,49 Z")
            };
            Set_Locus(obj, pathGeometry, "Line_Move", "EndPoint", story_circle);
            Set_Locus(obj, pathGeometry, "Arc_Move", "Center", story_arc);
        }

        private void Set_Locus(Canvas obj, PathGeometry geo, string targetname, string value, Storyboard storyboard)
        {
            PointAnimationUsingPath pointAnimationUsingPath = new PointAnimationUsingPath()
            {
                Duration = new Duration(TimeSpan.FromSeconds(delay / partition)),
                RepeatBehavior = RepeatBehavior.Forever,
            };
            PathGeometry pathGeometry = geo;
            pointAnimationUsingPath.PathGeometry = pathGeometry;

            Storyboard.SetTargetName(pointAnimationUsingPath, targetname);
            Storyboard.SetTargetProperty(pointAnimationUsingPath, new PropertyPath(value));

            storyboard.Children.Add(pointAnimationUsingPath);
            storyboard.Begin(obj, true);
            storyboard.Pause(obj);
        }

        private void Set_AnimationPath(PathGeometry geo, string targetname, string value, PathAnimationSource source, Storyboard storyboard)
        {
            DoubleAnimationUsingPath usingPath = new DoubleAnimationUsingPath()
            {
                Duration = new Duration(TimeSpan.FromSeconds(delay)),
                Source = source,
            };
            usingPath.PathGeometry = geo;

            Storyboard.SetTargetName(usingPath, targetname);
            Storyboard.SetTargetProperty(usingPath, new PropertyPath(value));

            storyboard.Children.Add(usingPath);
            storyboard.Completed  = Story_Completed;
        }

using System;
using System.Collections.Generic;
using System.Configuration;
using System.Data;
using System.Linq;
using System.Threading.Tasks;
using System.Windows;

namespace DT_8
{
    ///

    /// App.xaml 的交互逻辑
    ///

    public partial class App : Application
    {
    }
}

 属性            大小     日期    时间   名称
----------- ---------  ---------- -----  ----

    ..A..H.     51200  2020-04-17 15:52  DT_8\.vs\DT_8\v15\.suo

     文件          0  2020-04-17 08:19  DT_8\.vs\DT_8\v15\Server\sqlite3\db.lock

     文件     679936  2020-04-17 15:42  DT_8\.vs\DT_8\v15\Server\sqlite3\storage.ide

     文件      32768  2020-04-17 14:16  DT_8\.vs\DT_8\v15\Server\sqlite3\storage.ide-shm

     文件    4120032  2020-04-17 15:44  DT_8\.vs\DT_8\v15\Server\sqlite3\storage.ide-wal

    ..A..H.     52224  2020-04-18 23:26  DT_8\.vs\DT_8\v16\.suo

     文件        189  2020-04-16 18:19  DT_8\DT_8\App.config

     文件        362  2020-04-16 18:19  DT_8\DT_8\App.xaml

     文件        331  2020-04-16 18:19  DT_8\DT_8\App.xaml.cs

     文件      16384  2020-04-18 23:11  DT_8\DT_8\bin\Debug\DT_8.exe

     文件        189  2020-04-16 18:19  DT_8\DT_8\bin\Debug\DT_8.exe.config

     文件      42496  2020-04-18 23:11  DT_8\DT_8\bin\Debug\DT_8.pdb

     文件       4171  2020-04-18 22:55  DT_8\DT_8\DT_8.csproj

     文件        539  2020-04-18 22:31  DT_8\DT_8\MainWindow.xaml

     文件      13051  2020-04-18 23:09  DT_8\DT_8\MainWindow.xaml.cs

     文件       2296  2020-04-16 18:19  DT_8\DT_8\Properties\AssemblyInfo.cs

     文件       2821  2020-04-16 18:19  DT_8\DT_8\Properties\Resources.Designer.cs

     文件       5612  2020-04-16 18:19  DT_8\DT_8\Properties\Resources.resx

     文件       1091  2020-04-16 18:19  DT_8\DT_8\Properties\Settings.Designer.cs

     文件        201  2020-04-16 18:19  DT_8\DT_8\Properties\Settings.settings

     文件       1117  2020-04-16 18:19  DT_8\DT_8.sln

     目录          0  2020-04-17 19:09  DT_8\.vs\DT_8\v15\Server\sqlite3

     目录          0  2020-04-17 19:09  DT_8\.vs\DT_8\v15\Server

     目录          0  2020-04-17 19:09  DT_8\.vs\DT_8\v15

     目录          0  2020-04-17 08:06  DT_8\.vs\DT_8\v16

     目录          0  2020-04-18 14:02  DT_8\DT_8\bin\Debug

     目录          0  2020-04-18 22:51  DT_8\DT_8\bin\Release

     目录          0  2020-04-18 23:42  DT_8\DT_8\obj\Debug

     目录          0  2020-04-17 08:19  DT_8\.vs\DT_8

     目录          0  2020-04-18 22:51  DT_8\DT_8\bin

............此处省略8个文件信息
