数字图像处理java版源代码

用java实现的数字图像处理的基本算法。代码非常清晰，算法一个包，工具一个包，界面一个包。非常适合数字图像处理的初学者。

package algorithm;



import java.awt.*;
import java.awt.image.*;

public class Canny extends Component {

        public Canny（） {
               threshold1 = 50;
               threshold2 = 230;
               setThreshold（128）;
               setWidGaussianKernel（15）;
        }

        public void process（）  {

               width = sourceImage.getWidth（this）;
               height = sourceImage.getHeight（this）;
               picsize = width * height;
               data = new int[picsize];
               magnitude = new int[picsize];
               orientation = new int[picsize];
               float f = 1.0F;
               canny_core（f widGaussianKernel）;
               thresholding_tracker（threshold1 threshold2）;


               for （int i = 0; i < picsize; i++）
                       if （data[i] > threshold）
                               data[i] = 0xff000000;
                       else
                               data[i] = -1;

               edgeImage =  pixels2image（data）;
               data = null;
               magnitude = null;

        }

        private void canny_core（float f int i） {
               boolean flag = false;
               boolean flag1 = false;
               derivative_mag = new int[picsize];
               float af4[] = new float[i];
               float af5[] = new float[i];
               float af6[] = new float[i];
               data = image2pixels（sourceImage）;
               int k4 = 0;
               do {
                       if （k4 >= i）
                               break;
                       float f1 = gaussian（k4 f）;
                       if （f1 <= 0.005F && k4 >= 2）
                               break;
                       float f2 = gaussian（（float） k4 - 0.5F f）;
                       float f3 = gaussian（（float） k4 + 0.5F f）;
                       float f4 = gaussian（k4 f * 0.5F）;
                       af4[k4] = （f1 + f2 + f3） / 3F / （6.283185F * f * f）;
                       af5[k4] = f3 - f2;
                       af6[k4] = 1.6F * f4 - f1;
                       k4++;
               } while （true）;
               int j = k4;
               float af[] = new float[picsize];
               float af1[] = new float[picsize];
               int j1 = width - （j - 1）;
               int l = width * （j - 1）;
               int i1 = width * （height - （j - 1））;
               for （int l4 = j - 1; l4 < j1; l4++） {
                       for （int l5 = l; l5 < i1; l5 += width） {
                               int k1 = l4 + l5;
                               float f8 = （float） data[k1] * af4[0];
                               float f10 = f8;
                               int l6 = 1;
                               int k7 = k1 - width;
                               for （int i8 = k1 + width; l6 < j; i8 += width） {
                                      f8 += af

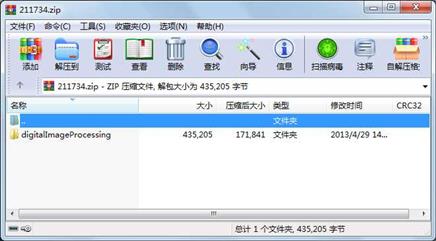

 属性            大小     日期    时间   名称
----------- ---------  ---------- -----  ----
     目录           0  2013-04-29 14:43  digitalImageProcessing\
     文件         386  2013-04-29 14:43  digitalImageProcessing\.classpath
     文件         398  2013-04-29 14:43  digitalImageProcessing\.project
     目录           0  2013-04-29 14:43  digitalImageProcessing\.settings\
     文件         629  2013-04-29 14:43  digitalImageProcessing\.settings\org.eclipse.jdt.core.prefs
     目录           0  2013-04-29 14:43  digitalImageProcessing\bin\
     目录           0  2013-04-29 14:43  digitalImageProcessing\bin\algorithm\
     文件        7931  2013-04-29 14:43  digitalImageProcessing\bin\algorithm\Canny.class
     文件        1697  2013-04-29 14:43  digitalImageProcessing\bin\algorithm\EdgeDetection.class
     文件        3496  2013-04-29 14:43  digitalImageProcessing\bin\algorithm\FFTTransform.class
     文件        6659  2013-04-29 14:43  digitalImageProcessing\bin\algorithm\GeoTransform.class
     文件       10341  2013-04-29 14:43  digitalImageProcessing\bin\algorithm\ImageEnhancement.class
     文件        3723  2013-04-29 14:43  digitalImageProcessing\bin\algorithm\ImageSegmentation.class
     文件        2090  2013-04-29 14:43  digitalImageProcessing\bin\algorithm\Morphology.class
     文件        7491  2013-04-29 14:43  digitalImageProcessing\bin\algorithm\WaveletTransform.class
     目录           0  2013-04-29 14:43  digitalImageProcessing\bin\test\
     文件        4582  2013-04-29 14:43  digitalImageProcessing\bin\test\HistgramDlg.class
     文件        2260  2013-04-29 14:43  digitalImageProcessing\bin\test\MouseEvent_1$1.class
     文件        1011  2013-04-29 14:43  digitalImageProcessing\bin\test\MouseEvent_1.class
     文件         729  2013-04-29 14:43  digitalImageProcessing\bin\test\RotateDlg$1.class
     文件         718  2013-04-29 14:43  digitalImageProcessing\bin\test\RotateDlg$2.class
     文件         718  2013-04-29 14:43  digitalImageProcessing\bin\test\RotateDlg$3.class
     文件        4508  2013-04-29 14:43  digitalImageProcessing\bin\test\RotateDlg.class
     文件        2404  2013-04-29 14:43  digitalImageProcessing\bin\test\TestForLinearDlg$1.class
     文件        5951  2013-04-29 14:43  digitalImageProcessing\bin\test\TestForLinearDlg.class
     目录           0  2013-04-29 14:43  digitalImageProcessing\bin\util\
     文件        4391  2013-04-29 14:43  digitalImageProcessing\bin\util\ProcessMath.class
     文件        3481  2013-04-29 14:43  digitalImageProcessing\bin\util\ProcessUtil.class
     目录           0  2013-04-29 14:43  digitalImageProcessing\bin\view\
     文件         725  2013-04-29 14:43  digitalImageProcessing\bin\view\ConvoleDlg$1.class
     文件         725  2013-04-29 14:43  digitalImageProcessing\bin\view\ConvoleDlg$2.class
............此处省略119个文件信息
