扇形束CT成像几何中,滤波反投影算法,Matlab版本。

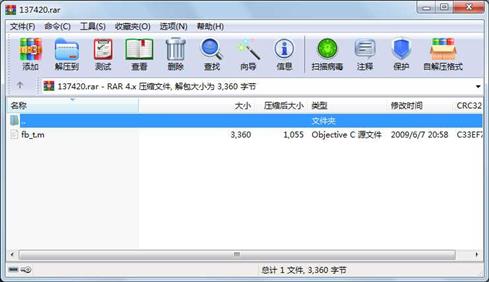

资源截图

代码片段和文件信息

clear all
close all
load head.mat;
% head =phantom(256);
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%获得扇形束等距离投影数据
D = 512;                                                                                %%%%射线源到图象中心的距离
[shade] = fanbeam(headD‘FanSensorGeometry‘‘line‘‘FanSensorSpacing‘1);    %%%%获得投影数据 线形检测器 通道数sp  旋转角度360。
figure;
imshow(shade[]);title(‘360度投影数据‘);
clear Xangle;
%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%修正投影数据
[XsizeYsize] = size(shade);
for n = 1:Ysize
    for m = 1:Xsize
        shade_temp(mn) = shade(mn)*D/sqrt(D.^2+(m-185).^2);
% shade_temp(mn) = shade(mn);
    end
end;
% shade_temp = (D/sqrt(D.^2+(m-185).^2))*shade;
clear Xsize;
clear Ysize;
figure
imshow(shade_temp[]);
title(‘修正后的投影数据‘);
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%进行R_L卷积滤波

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%生成R_L卷积核
t=linspace(-128127256);
filt=0.0085*(sinc(t)/2-sinc(t/2).^2/4);
figure;
plot(filt);
title(‘R__L 滤波函数 256点‘)
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
tic
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%卷积滤波
shade = shade_temp;
clear shade_temp;
shade_temp = zeros(881360);
shade_temp(257:625:) = shade;
for n = 1:360
    temp(:n) = conv(shade_temp(:n)filt);
end
clear shade_temp;
% % % % % % % % % % shade_temp =abs(temp(385:753:));
shade_temp =temp(385:753:);
size(shade_temp);
figure
imshow(shade_temp[]);
title(‘滤波后投影数据‘);
clear filt;
clear shade;
clear temp;
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%进行反投影
re = zeros(256256);
d_th = pi/180;
for view = 1:360
    for x = 1:256
        for y = 1:256
            u = (D-(x-128.5)*cos((view-1)*d_th)-(y-128.5)*sin((view-1)*d_th));
            n = D*(-(x-128.5)*sin((view-1)*d_th)+(y-128.5)*cos((view-1)*d_th))/u+185;
            if (1                nn = fix(n); n0 = n-nn;
%                 re(xy) = ((1-n0)*shade_temp(nnview)+n0*shade_temp(nn+1view))*D^2/u^2;
                re(xy) = re(xy) + ((1-n0)*shade_temp(nnview)+n0*shade_temp(nn+1view))*D^2/u^2;

            else re(xy) = re(xy);
            end
        end
    end
%     view
%     figure
%     imshow(re[])
end
figure
imshow(re[])
title(‘重建后的图象‘);
toc

figure
imshow(head[])
title(‘原始图象‘);
p1 = re(128:);
p2 = head(128:);
figure
plot(p1
