资源简介
经典的四元数解算方法官方源码Madgwick 和 Mahony,里面有模拟示例数据和c和matlab类型的数据,特别适合开发所需要的姿态解算和惯性导航所需要的姿态解算。本人亲测代码可以使用。
代码片段和文件信息
//=====================================================================================================
// MadgwickAHRS.c
//=====================================================================================================
//
// Implementation of Madgwick‘s IMU and AHRS algorithms.
// See: http://www.x-io.co.uk/node/8#open_source_ahrs_and_imu_algorithms
//
// Date Author Notes
// 29/09/2011 SOH Madgwick Initial release
// 02/10/2011 SOH Madgwick Optimised for reduced CPU load
// 19/02/2012 SOH Madgwick Magnetometer measurement is normalised
//
//=====================================================================================================
//---------------------------------------------------------------------------------------------------
// Header files
#include “MadgwickAHRS.h“
#include
//---------------------------------------------------------------------------------------------------
// Definitions
#define sampleFreq 512.0f // sample frequency in Hz
#define betaDef 0.1f // 2 * proportional gain
//---------------------------------------------------------------------------------------------------
// Variable definitions
volatile float beta = betaDef; // 2 * proportional gain (Kp)
volatile float q0 = 1.0f q1 = 0.0f q2 = 0.0f q3 = 0.0f; // quaternion of sensor frame relative to auxiliary frame
//---------------------------------------------------------------------------------------------------
// Function declarations
float invSqrt(float x);
//====================================================================================================
// Functions
//---------------------------------------------------------------------------------------------------
// AHRS algorithm update
void MadgwickAHRSupdate(float gx float gy float gz float ax float ay float az float mx float my float mz) {
float recipNorm;
float s0 s1 s2 s3;
float qDot1 qDot2 qDot3 qDot4;
float hx hy;
float _2q0mx _2q0my _2q0mz _2q1mx _2bx _2bz _4bx _4bz _2q0 _2q1 _2q2 _2q3 _2q0q2 _2q2q3 q0q0 q0q1 q0q2 q0q3 q1q1 q1q2 q1q3 q2q2 q2q3 q3q3;
// Use IMU algorithm if magnetometer measurement invalid (avoids NaN in magnetometer normalisation)
if((mx == 0.0f) && (my == 0.0f) && (mz == 0.0f)) {
MadgwickAHRSupdateIMU(gx gy gz ax ay az);
return;
}
// Rate of change of quaternion from gyroscope陀螺仪四元数的变化率
qDot1 = 0.5f * (-q1 * gx - q2 * gy - q3 * gz);
qDot2 = 0.5f * (q0 * gx + q2 * gz - q3 * gy);
qDot3 = 0.5f * (q0 * gy - q1 * gz + q3 * gx);
qDot4 = 0.5f * (q0 * gz + q1 * gy - q2 * gx);
// Compute feedback only if accelerometer measurement valid (avoids NaN in accelerometer normalisation)
if(!((ax == 0.0f) && (ay == 0.0f) && (az == 0.0f))) {
// Normalise accelerometer measurement
recipNorm = invSqrt(ax * ax + ay * ay + az * az);
ax *= recipNorm;
ay *= recipNorm;
az *= recipNorm;
// Normali

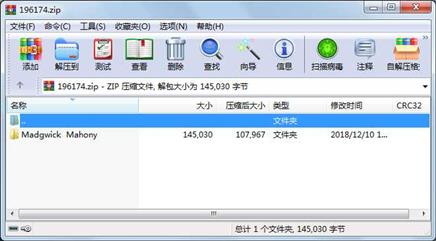

属性 大小 日期 时间 名称
----------- --------- ---------- ----- ----
目录 0 2018-12-10 17:35 Madgwick Mahony\
目录 0 2018-10-11 17:59 Madgwick Mahony\madgwick_algorithm_c\
目录 0 2018-10-11 20:06 Madgwick Mahony\madgwick_algorithm_c\MadgwickAHRS\
文件 9210 2018-12-10 17:23 Madgwick Mahony\madgwick_algorithm_c\MadgwickAHRS\MadgwickAHRS.c
文件 1519 2011-10-02 16:21 Madgwick Mahony\madgwick_algorithm_c\MadgwickAHRS\MadgwickAHRS.h
目录 0 2018-10-11 19:29 Madgwick Mahony\madgwick_algorithm_c\MahonyAHRS\
文件 8411 2018-12-10 17:23 Madgwick Mahony\madgwick_algorithm_c\MahonyAHRS\MahonyAHRS.c
文件 1573 2011-10-02 16:21 Madgwick Mahony\madgwick_algorithm_c\MahonyAHRS\MahonyAHRS.h
目录 0 2018-10-11 17:59 Madgwick Mahony\madgwick_algorithm_matlab\
目录 0 2018-10-11 17:59 Madgwick Mahony\madgwick_algorithm_matlab\@MadgwickAHRS\
文件 4678 2011-09-28 23:40 Madgwick Mahony\madgwick_algorithm_matlab\@MadgwickAHRS\MadgwickAHRS.m
目录 0 2018-10-11 17:59 Madgwick Mahony\madgwick_algorithm_matlab\@MahonyAHRS\
文件 4718 2011-09-28 23:40 Madgwick Mahony\madgwick_algorithm_matlab\@MahonyAHRS\MahonyAHRS.m
文件 101819 2011-09-24 13:39 Madgwick Mahony\madgwick_algorithm_matlab\ExampleData.mat
文件 3263 2012-11-06 19:00 Madgwick Mahony\madgwick_algorithm_matlab\Examplesc
目录 0 2018-10-11 17:59 Madgwick Mahony\madgwick_algorithm_matlab\quaternion_library\
文件 2465 2011-09-27 16:51 Madgwick Mahony\madgwick_algorithm_matlab\quaternion_library\Testsc
文件 650 2011-09-27 16:52 Madgwick Mahony\madgwick_algorithm_matlab\quaternion_library\axisAngle2quatern.m
文件 965 2011-09-27 16:52 Madgwick Mahony\madgwick_algorithm_matlab\quaternion_library\axisAngle2rotMat.m
文件 938 2011-09-27 16:52 Madgwick Mahony\madgwick_algorithm_matlab\quaternion_library\euler2rotMat.m
文件 878 2011-09-27 16:52 Madgwick Mahony\madgwick_algorithm_matlab\quaternion_library\quatern2euler.m
文件 825 2011-09-27 16:52 Madgwick Mahony\madgwick_algorithm_matlab\quaternion_library\quatern2rotMat.m
文件 378 2011-09-27 16:52 Madgwick Mahony\madgwick_algorithm_matlab\quaternion_library\quaternConj.m
文件 661 2011-09-27 16:51 Madgwick Mahony\madgwick_algorithm_matlab\quaternion_library\quaternProd.m
文件 645 2011-09-27 16:51 Madgwick Mahony\madgwick_algorithm_matlab\quaternion_library\rotMat2euler.m
文件 1434 2011-09-27 16:51 Madgwick Mahony\madgwick_algorithm_matlab\quaternion_library\rotMat2quatern.m
