无线传感器网络APIT定位算法的matlab源代码

无线传感器网络APIT定位算法的matlab源代码

function APIT（grid_length）
% In APIT the sensor nodes are not homogeneous
% the communication range of anchors is larger than that of unknown nodes
% comm_r: the communication range of the unknown node. it‘s saved in neighbor.mat
% the communication range of the anchor node is : times * comm_r saved in neighbor.mat
%~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    load ‘../Deploy Nodes/coordinates.mat‘;
    load ‘../Topology Of WSN/neighbor.mat‘;
    %~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
    disp（‘时间较长，耐心等待...‘）;
    unknown_node_index=all_nodes.anchors_n+1:all_nodes.nodes_n;
    row_n=ceil（all_nodes.square_L/grid_length）;    col_n=row_n;
    centroid_x=repmat（（[1:col_n]-0.5）*grid_lengthrow_n1）;
    centroid_y=repmat（transpose（（[1:row_n]-0.5）*grid_length）1col_n）;
    for i=unknown_node_index
        disp（[num2str（i）‘:我在跑，不要催啦...‘]）;
        neighboring_anchor_index=find（neighbor_matrix（i1:all_nodes.anchors_n）==1）;
        neighboring_anchor_n=length（neighboring_anchor_index）;
        if neighboring_anchor_n>=3
            gridmap=zeros（row_ncol_n）;
            grid_covered_flag=zeros（row_ncol_n）;
            for a=1:neighboring_anchor_n-2
                for b=a+1:neighboring_anchor_n-1
                    for c=b+1:neighboring_anchor_n
                        %~~判断未知节点i是否在三角形abc内部
                        % Approximate P.I.T Test: “If no neighbor of M is further from/close to all three anchors A B and C simultaneously
                        % M assumes that it is inside triangle abc. OtherwiseM assumes it resides outside the triangle.“
                        neighboring_node_index=setdiff（find（neighbor_matrix（i:）==1）neighboring_anchor_index（[a b c]））;
                        neighboring_node_rss_of_abc=neighbor_rss（neighboring_node_indexneighboring_anchor_index（[a b c]））;
                        in_out_judge=neighboring_node_rss_of_abc>repmat（neighbor_rss（ineighboring_anchor_index（[a b c]））length（neighboring_node_index）1）;
                        if any（sum（transpose（in_out_judge））==0|sum（transpose（in_out_judge））==3）%outside
                            Grid_in_triangle_abc=inpolygon（centroid_xcentroid_yall_nodes.estimated（neighboring_anchor_index（[a b c]）1）all_nodes.estimated（neighboring_anchor_index（[a b c]）2））;%被三角形abc覆盖到的网格
                            gridmap=gridmap-Grid_in_triangle_abc;
                        else%inside
                            Grid_in_triangle_abc=inpolygon（centroid_xcentroid_yall_nodes.estimated（neighboring_anchor_index（[a b c]）1）all_nodes.estimated（neighboring_anchor_index（[a b c]）2））;%被三角形abc覆盖到的网格
                            gridmap=gridmap+Grid_in_triangle_abc;
                        end
                        grid_covered_flag=grid_covered_flag|Grid_in_triangle_abc;
                    end

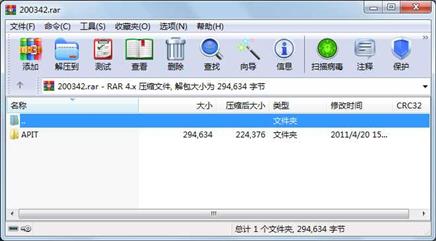

 属性            大小     日期    时间   名称
----------- ---------  ---------- -----  ----

     文件       3714  2010-06-04 11:28  APIT\APIT.m

     文件       3434  2010-06-04 11:28  APIT\PPIT.m

     文件     287486  2008-12-04 16:48  APIT\Range-Free Localization Schemes for Large Scale.pdf

     目录          0  2011-04-20 15:52  APIT

----------- ---------  ---------- -----  ----

               294634                    4
