资源简介
资源包含联合双边滤波算法的matlab版代码
资源包含联合双边滤波算法的matlab版代码
代码片段和文件信息
function img_out = bfilter2(image1 image2 n sigma1 sigma2)
%bfilter2 function: perfrom two dimensional bilateral gaussian filtering.
%The standard deviations of the bilateral filter are given by sigma1 and
%sigma2 where the standard deviation of spatial-domain is given by sigma1
% and the standard deviation intensity-domain is given by sigma2.
%This function presents both bilateral filter and joint-bilateral filter.
%If you use the same image as image1 and image2 it is the normal bilateral
%filter; however if you use different images in image1 and image2 you can
%use it as joint-bilateral filter where the intensity-domain (range weight)
%calculations are performed using image2 and the spatial-domain (space weight)
%calculations are performed using image1.
%Usage:
% %Example1: normal bilateral filter using 5x5 kernel spatial-sigma=6 and
% %intensity-sigma= 0.25:
% image=bfilter2(I1I151.20.25);
% %Example2: joint-bilateral filter using 5x5 kernel spatial-sigma=1.2
% %and range-sigma= 0.25 the spatial-domain calculations are performed
% %using image (I1) and the intensity-domain calulcations (range weight)
% %are performed using image (I2):
% image=bfilter2(I1I251.20.25);
% %Example3: use the default values for n sigma1 and sigma2
% image=bfilter2(I1);
%Input:
% -image1: the spatial-domain image
% -image2: the intensity-domain (range weight) image (use the same image
% for the normal bilateral filter. Use different images for joint-bilateral
% filter.
% (default use the same image; i.e. image2=image1)
% -n: kernel (window) size [nxn] should be odd number (default=5)
% -sigma1: the standard deviation of spatial-domain (default=1.2)
% sigma2: the standard deviation of intensity-domain (default=0.25)
%Author: Mahmoud Afifi York University.
%argument‘s check
%补充:输出图像为归一化后double类型图像
if nargin<1
error(‘Too few input arguments‘);
elseif nargin<2
image2=image1;
n=5;
sigma1=1.2;
sigma2=0.25;
elseif nargin<3
n=5;
sigma1=1.2;
sigma2=0.25;
elseif nargin<4
sigma1=1.2;
sigma2=0.25;
elseif nargin<5
sigma2=0.25;
end
%kernel size check
if mod(n2)==0
error(‘Please use odd number for kernel size‘);
end
%dimensionality check
if size(image11)~=size(image21) || size(image12)~=size(image22) || ...
size(image13)~=size(image23)
error(‘Both images should have the same dimensions and number of color channels‘);
end
display(‘processing...‘);
w=floor(n/2);
% spatial-domain weights.
[XY] = meshgrid(-w:w-w:w);
gs = exp(-(X.^2+Y.^2)/(2*sigma1^2));
%normalize images
if isa(image1‘uint8‘)==1
image1=double(image1)/255;
end
if isa(image2‘uint8‘)==1
image2=double(image2)/255;
end
%intialize img_out
img_out=zeros(size(image11)size(image12)size(image13));
%padd both iamges
image1=padarray(image1[w w]‘replicate‘‘both‘);
image2=padarray(imag

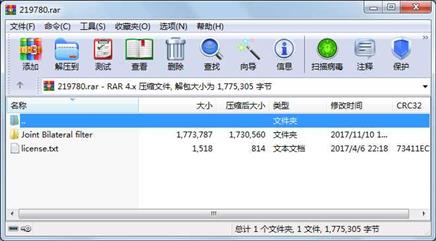

属性 大小 日期 时间 名称
----------- --------- ---------- ----- ----
文件 1518 2017-04-06 22:18 license.txt
文件 3826 2017-11-10 11:14 Joint Bilateral filter\bfilter2.m
文件 300166 2017-04-07 09:43 Joint Bilateral filter\demo.jpg
文件 487 2017-04-07 10:08 Joint Bilateral filter\Demo.m
文件 636620 2017-04-07 09:15 Joint Bilateral filter\image1.jpg
文件 647883 2017-04-07 10:08 Joint Bilateral filter\image2.jpg
文件 1761 2017-04-07 10:12 Joint Bilateral filter\ReadMe.txt
文件 81167 2017-04-07 10:10 Joint Bilateral filter\result1.jpg
文件 101877 2017-04-07 10:13 Joint Bilateral filter\result2.jpg
目录 0 2017-11-10 11:15 Joint Bilateral filter
----------- --------- ---------- ----- ----
