资源简介
基于CSharpz巴斯勒相机开发的多相机Demo,很适合新人使用。。。。。。
代码片段和文件信息
/*
This sample illustrates how to grab images and process images
using multiple cameras simultaneously.
The sample uses a pool of buffers that are passed to a stream grabber to be filled with
image data. Once a buffer is filled and ready for processing the buffer is retrieved from
the stream grabber processed and passed back to the stream grabber to be filled again.
Buffers retrieved from the stream grabber are not overwritten as long as
they are not passed back to the stream grabber.
*/
#ifndef _WIN32_WINNT
# define _WIN32_WINNT 0x0400
#endif
#ifndef _WIN32
# define _WIN32
#endif
#include
#include
#include
#include
#include
/* Limits the amount of cameras used for grabbing.
It is important to manage the available bandwidth when grabbing with multiple
cameras. This applies for instance if two GigE cameras are connected to the
same network adapter via a switch. To manage the bandwidth the GevSCPD
interpacket delay parameter and the GevSCFTD transmission delay parameter can
be set for each GigE camera device. The “Controlling Packet Transmission Timing
with the Interpacket and frame Transmission Delays on Basler GigE Vision Cameras“
Application Note (AW000649xx000) provides more information about this topic. */
#define NUM_DEVICES 1
#define NUM_BUFFERS 5 /* Number of buffers used for grabbing. */
#define GIGE_PACKET_SIZE 1500 /* Size of one Ethernet packet. */
#define GIGE_PROTOCOL_OVERHEAD 36 /* Total number of bytes of protocol overhead. */
#define CHECK( errc ) if ( GENAPI_E_OK != errc ) printErrorAndExit( errc )
/* This function can be used to wait for user input at the end of the sample program. */
void pressEnterToExit(void);
/* This method demonstrates how to retrieve the error message for the last failed function call. */
void printErrorAndExit( GENAPIC_RESULT errc );
/* Calculating the minimum and maximum gray value. */
void getMinMax( const unsigned char* pImg int32_t width int32_t height
unsigned char* pMin unsigned char* pMax);
int main(void)
{
GENAPIC_RESULT res; /* Return value of pylon methods. */
size_t numDevicesAvail; /* Number of available devices. */
_Bool isAvail; /* Used for checking feature availability. */
int deviceIndex; /* Index of device used in following variables. */
PYLON_WAITobjectS_HANDLE wos; /* Wait objects. */
HANDLE hTimer; /* Grab timer. */
PYLON_WAITobject_HANDLE woTimer; /* Timer wait object. */
/* These are camera specific variables */
PYLON_DEVICE_HANDLE hDev[NUM_DEVICES]; /* Handle for the pylon device. */
PYLON_STREAMGRABBER_HAN

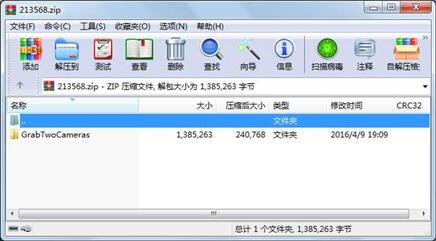

属性 大小 日期 时间 名称
----------- --------- ---------- ----- ----
目录 0 2016-04-09 19:09 GrabTwoCameras\
文件 724 2015-10-22 16:08 GrabTwoCameras\debug.mak
文件 23176 2016-04-10 13:07 GrabTwoCameras\GrabTwoCameras.c
文件 8616 2015-10-30 13:22 GrabTwoCameras\GrabTwoCameras.vcproj
文件 12447 2016-04-09 19:06 GrabTwoCameras\GrabTwoCameras.vcxproj
文件 513 2016-04-09 19:06 GrabTwoCameras\GrabTwoCameras.vcxproj.filters
文件 143 2016-04-09 19:06 GrabTwoCameras\GrabTwoCameras.vcxproj.user
文件 150 2014-12-08 16:07 GrabTwoCameras\makefile
文件 701 2015-10-22 16:08 GrabTwoCameras\release.mak
目录 0 2016-04-09 19:09 GrabTwoCameras\Win32\
目录 0 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\
文件 786 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\cl.command.1.tlog
文件 16356 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\CL.read.1.tlog
文件 338 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\CL.write.1.tlog
文件 39936 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\GrabTwoCameras.exe
文件 406 2016-04-09 19:09 GrabTwoCameras\Win32\Debug\GrabTwoCameras.exe.em
文件 472 2016-04-09 19:09 GrabTwoCameras\Win32\Debug\GrabTwoCameras.exe.em
文件 381 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\GrabTwoCameras.exe.intermediate.manifest
文件 450172 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\GrabTwoCameras.ilk
文件 51 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\GrabTwoCameras.lastbuildstate
文件 2438 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\GrabTwoCameras.log
文件 519168 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\GrabTwoCameras.pdb
文件 0 2016-04-09 19:09 GrabTwoCameras\Win32\Debug\GrabTwoCameras.write.1.tlog
文件 46861 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\GrabTwoCameras1.obj
文件 232 2016-04-09 19:09 GrabTwoCameras\Win32\Debug\GrabTwoCameras_manifest.rc
文件 2 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\li
文件 2 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\li
文件 2 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\li
文件 2 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\li
文件 2 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\li
文件 2 2016-04-10 13:07 GrabTwoCameras\Win32\Debug\li
............此处省略11个文件信息
