资源简介
ADXL345 3轴加速度传感器, STM32 SPI 代码亲测可用,有问题可以下方评论。
代码片段和文件信息
#include “ADXL345.h“
#include “delay.h“
void SPI_init(void)
{
GPIO_InitTypeDef GPIO_InitStructure;
SPI_InitTypeDef SPI_InitStructure;
RCC_APB2PeriphClockCmd(RCC_APB2Periph_AFIO | RCC_APB2Periph_GPIOA |
RCC_APB2Periph_GPIOB| RCC_APB2Periph_GPIOC ENABLE);
RCC_APB2PeriphClockCmd(ADXL345_SPI_CLK ENABLE);
GPIO_StructInit(&GPIO_InitStructure);
GPIO_InitStructure.GPIO_Pin =ADXL345_SPI_CS_PIN ;
GPIO_InitStructure.GPIO_Mode=GPIO_Mode_Out_PP;
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_Init(ADXL345_SPI_CS_GPIO_PORT &GPIO_InitStructure);
GPIO_SetBits(ADXL345_SPI_CS_GPIO_PORTADXL345_SPI_CS_PIN);
GPIO_StructInit(&GPIO_InitStructure);
GPIO_InitStructure.GPIO_Pin = ADXL345_SPI_SCK_PIN|ADXL345_SPI_MISO_PIN|ADXL345_SPI_MOSI_PIN;
GPIO_InitStructure.GPIO_Mode=GPIO_Mode_AF_PP;
GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
GPIO_Init(ADXL345_SPI_MOSI_GPIO_PORT &GPIO_InitStructure);
SPI_InitStructure.SPI_Direction=SPI_Direction_2Lines_FullDuplex;
SPI_InitStructure.SPI_Mode=SPI_Mode_Master;
SPI_InitStructure.SPI_DataSize = SPI_DataSize_16b;
SPI_InitStructure.SPI_CPOL=SPI_CPOL_High;
SPI_InitStructure.SPI_CPHA=SPI_CPHA_2Edge;
SPI_InitStructure.SPI_NSS=SPI_NSS_Soft;
SPI_InitStructure.SPI_BaudRatePrescaler=SPI_BaudRatePrescaler_256;
SPI_InitStructure.SPI_FirstBit=SPI_FirstBit_MSB;
SPI_InitStructure.SPI_CRCPolynomial=7;
SPI_Init(ADXL345_SPI &SPI_InitStructure);
SPI_Cmd(ADXL345_SPIENABLE);
}
void ADXL345_init(void)
{
SPI_init();
ADXL345_write_byte(0x1E0x00);
ADXL345_write_byte(0x1F0x00);
ADXL345_write_byte(0x200x00);
ADXL345_write_byte(0x210x00);
ADXL345_write_byte(0x220x00);
ADXL345_write_byte(0x230x00);
ADXL345_write_byte(0x240x01);
ADXL345_write_byte(0x250x01);
ADXL345_write_byte(0x260x2B);
ADXL345_write_byte(0x270x00);
ADXL345_write_byte(0x280x09);
ADXL345_write_byte(0x290xFF);
ADXL345_write_byte(0x2A0x80);
//ADXL345_read_byte(0x2B);
ADXL345_write_byte(0x2C0x0F);
ADXL345_write_byte(0x2D0x08);
ADXL345_write_byte(0x2E0x80);
ADXL345_write_byte(0x2F0x00);
//ADXL345_read_byte(0x30);
ADXL345_write_byte(0x310X0B);
ADXL345_write_byte(0x380x00);
//ADXL345_read_byte(0x39);
}
uint8_t ADXL345_read_byte(uint8_t add)
{
GPIO_ResetBits(ADXL345_SPI_CS_GPIO_PORT ADXL345_SPI_CS_PIN);
SPI_I2S_SendData(ADXL345_SPI(add|0x80)<<8|0x00);
while(SPI_I2S_GetFlagStatus(ADXL345_SPISPI_I2S_FLAG_TXE)==RESET);
while(SPI_I2S_GetFlagStatus(ADXL345_SPI SPI_I2S_FLAG_RXNE)==RESET);
GPIO_SetBits(ADXL345_SPI_CS_GPIO_PORT ADXL345_SPI_CS_PIN);
return SPI_I2S_ReceiveData(ADXL345_SPI)&0xff;
}
void ADXL345_write_byte(uint8_t adduint8_t val)
{
GPIO_ResetBits(ADXL34

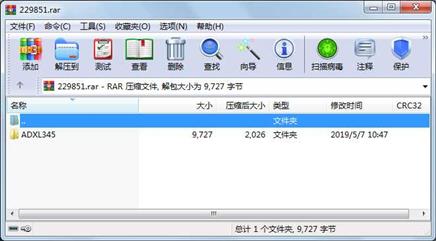

属性 大小 日期 时间 名称
----------- --------- ---------- ----- ----
