资源简介

1 将REFPROP V8 copy在C:\Program Files\ : 2 matalab 编程文件夹下包含,rp_proto64.m、rp_proto.m refpropm.m 3个文件 3 Enjoy 例子 gas='Air.mix' H=refpropm('H','T', T,'P',P, gas)

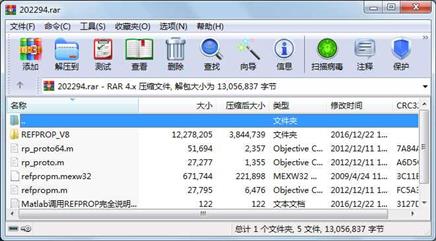

资源截图

代码片段和文件信息

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% refpropm  Thermophysical properties of pure substances and mixtures.
%   Calling sequence for pure substances:
%      result=refpropm(prop_req spec1 value1 spec2 value2 substance1)
%
%   Calling predefined mixtures:
%      result=refpropm(prop_req spec1 value1 spec2 value2 mixture1)
%
%   Calling user defined mixtures:
%      result=refpropm(prop_req spec1 value1 spec2 value2
%                                           substance1 substance2 ... x)
%
%   where
%       prop_req    character string showing the requested properties
%                   Each property is represented by one character:
%                           0   Refprop DLL version number
%                           A   Speed of sound [m/s]
%                           B   Volumetric expansivity (beta) [1/K]
%                           C   Cp [J/(kg K)]
%                           D   Density [kg/m3]
%                           E   dP/dT (along the saturation line) [kPa/K]
%                           F   Fugacity [kPa] (returned as an array)
%                           G   Gross heating value [J/kg]
%                           H   Enthalpy [J/kg]
%                           I   Surface tension [N/m]
%                           J   Isenthalpic Joule-Thompson coeff [K/kPa]
%                           K   Ratio of specific heats (Cp/Cv) [-]
%                           L   Thermal conductivity [W/(m K)]
%                           M   Molar mass [g/mol]
%                           N   Net heating value [J/kg]
%                           O   Cv [J/(kg K)]
%                           P   Pressure [kPa]
%                           Q   Quality (vapor fraction) (kg/kg)
%                           R   d(rho)/dP (constant T) [kg/kPa]
%                           S   Entropy [J/(kg K)]
%                           T   Temperature [K]
%                           U   Internal energy [J/kg]
%                           V   Dynamic viscosity [Pa*s]
%                           W   d(rho)/dT (constant p)[kg/(m^3 K)]
%                           X   Liquid phase & gas phase comp.(mass frac.)
%                           Z   Compressibility factor
%                           +   Liquid density of equilibrium phase
%                           -   Vapor density of equilibrium phase
%                           !   dH/d(rho) (constant T) [(J/kg)/(kg/m^3)]
%                           @   dH/dT (constant rho) [J/(kg K)]
%                           #   dP/dT (constant rho) [kPa/K]
%                           $   Kinematic viscosity [cm^2/s]
%                           %   Thermal diffusivity [cm^2/s]
%                           ^   Prandtl number [-]
%
%       spec1           first input character:  T P H D C R or M
%                         T P H D:  see above
%                         C:  properties at the critical point
%                         R:  properti

 属性            大小     日期    时间   名称
----------- ---------  ---------- -----  ----

     文件     140488  2000-05-22 17:58  REFPROP_V8\comdlg32.ocx

     文件       1577  2007-04-10 12:00  REFPROP_V8\defaults.prf

     文件       5629  2007-04-10 12:00  REFPROP_V8\examples\CPP.ZIP

     文件       1442  2007-04-10 12:00  REFPROP_V8\examples\EX-MIX.FOR

     文件       2411  2007-04-10 12:00  REFPROP_V8\examples\EX-PPF.FOR

     文件       8527  2007-04-10 12:00  REFPROP_V8\examples\EXAMPLE.FOR

     文件     304812  2007-04-10 12:00  REFPROP_V8\examples\LABVIEW.ZIP

     文件     277954  2007-04-10 12:00  REFPROP_V8\examples\MATLAB.ZIP

     文件      22995  2007-04-10 12:00  REFPROP_V8\examples\sample.bas

     文件       7381  2007-04-10 12:00  REFPROP_V8\fluids\1BUTENE.FLD

     文件       5655  2007-04-10 12:00  REFPROP_V8\fluids\ACETONE.FLD

     文件      22434  2007-04-10 12:00  REFPROP_V8\fluids\AIR.PPF

     文件      23960  2007-04-10 12:00  REFPROP_V8\fluids\AMMONIA.FLD

     文件      43126  2007-04-10 12:00  REFPROP_V8\fluids\ARGON.FLD

     文件       5743  2007-04-10 12:00  REFPROP_V8\fluids\BENZENE.FLD

     文件      41688  2007-04-10 12:00  REFPROP_V8\fluids\BUTANE.FLD

     文件      19728  2007-04-10 12:00  REFPROP_V8\fluids\C12.FLD

     文件       5914  2007-04-10 12:00  REFPROP_V8\fluids\C2BUTENE.FLD

     文件       4461  2007-04-10 12:00  REFPROP_V8\fluids\C4F10.FLD

     文件       4559  2007-04-10 12:00  REFPROP_V8\fluids\C5F12.FLD

     文件       9363  2007-04-10 12:00  REFPROP_V8\fluids\CF3I.FLD

     文件      18048  2007-04-10 12:00  REFPROP_V8\fluids\CO.FLD

     文件      34278  2007-04-10 12:00  REFPROP_V8\fluids\CO2.FLD

     文件       5385  2007-04-10 12:00  REFPROP_V8\fluids\COS.FLD

     文件      12734  2007-04-10 12:00  REFPROP_V8\fluids\CYCLOHEX.FLD

     文件       4535  2007-04-10 12:00  REFPROP_V8\fluids\CYCLOPRO.FLD

     文件       5591  2007-04-10 12:00  REFPROP_V8\fluids\D2.FLD

     文件      13390  2007-04-10 12:00  REFPROP_V8\fluids\D2O.FLD

     文件      17458  2007-04-10 12:00  REFPROP_V8\fluids\DECANE.FLD

     文件      12881  2007-04-10 12:00  REFPROP_V8\fluids\DME.FLD

............此处省略176个文件信息
