DSP28377例程

DSP28377s的完整标准程序，已经在装置上运行，系统设置/ADC/PWM/定时器/GPIO/UART/IIC/SPI所有接口齐全，仿照就能用！

//###########################################################################
// FILE:   F2837xS_Adc.c
// title:  F2837xS Adc Support Functions.
//###########################################################################
// $TI Release: F2837xS Support Library v191 $
// $Release Date: Fri Mar 11 15:58:35 CST 2016 $
// $Copyright: Copyright （C） 2014-2016 Texas Instruments Incorporated -
//             http://www.ti.com/ ALL RIGHTS RESERVED $
//###########################################################################

#include “F2837xS_device.h“     // F2837xS Headerfile Include File
#include “F2837xS_Examples.h“   // F2837xS Examples Include File

/*
* Set the resolution and signalmode for a given ADC. This will ensure that
* the correct trim is loaded.
*/
void AdcSetMode（Uint16 adc Uint16 resolution Uint16 signalmode）
{
	Uint16 adcOffsetTrimOTPIndex; //index into OTP table of ADC offset trims
	Uint16 adcOffsetTrim; //temporary ADC offset trim

	//re-populate INL trim
	CalAdcINL（adc）;

	if（0xFFFF != *（（Uint16*）0x0703AC））{
		//offset trim function is programmed into OTP so call it

		//calculate the index into OTP table of offset trims and call
		//function to return the correct offset trim
		adcOffsetTrimOTPIndex = 4*adc + 2*resolution + 1*signalmode;
		adcOffsetTrim = （*GetAdcOffsetTrimOTP）（adcOffsetTrimOTPIndex）;
	}
	else {
		//offset trim function is not populated so set offset trim to 0
		adcOffsetTrim = 0;
	}

	//Apply the resolution and signalmode to the specified ADC.
	//Also apply the offset trim and if needed linearity trim correction.
	switch（adc）{
		case ADC_ADCA:
			AdcaRegs.ADCCTL2.bit.RESOLUTION = resolution;
			AdcaRegs.ADCCTL2.bit.SIGNALMODE = signalmode;
			AdcaRegs.ADCOFFTRIM.all = adcOffsetTrim;
			if（ADC_RESOLUTION_12BIT == resolution）{

				//12-bit linearity trim workaround
				AdcaRegs.ADCINLTRIM1 &= 0xFFFF0000;
				AdcaRegs.ADCINLTRIM2 &= 0xFFFF0000;
				AdcaRegs.ADCINLTRIM4 &= 0xFFFF0000;
				AdcaRegs.ADCINLTRIM5 &= 0xFFFF0000;
			}
		break;
		case ADC_ADCB:
			AdcbRegs.ADCCTL2.bit.RESOLUTION = resolution;
			AdcbRegs.ADCCTL2.bit.SIGNALMODE = signalmode;
			AdcbRegs.ADCOFFTRIM.all = adcOffsetTrim;
			if（ADC_RESOLUTION_12BIT == resolution）{

				//12-bit linearity trim workaround
				AdcbRegs.ADCINLTRIM1 &= 0xFFFF0000;
				AdcbRegs.ADCINLTRIM2 &= 0xFFFF0000;
				AdcbRegs.ADCINLTRIM4 &= 0xFFFF0000;
				AdcbRegs.ADCINLTRIM5 &= 0xFFFF0000;
			}
		break;
		case ADC_ADCC:
			AdccRegs.ADCCTL2.bit.RESOLUTION = resolution;
			AdccRegs.ADCCTL2.bit.SIGNALMODE = signalmode;
			AdccRegs.ADCOFFTRIM.all = adcOffsetTrim;
			if（ADC_RESOLUTION_12BIT == resolution）{

				//12-bit linearity trim workaround
				AdccRegs.ADCINLTRIM1 &= 0xFFFF0000;
				AdccRegs.ADCINLTRIM2 &= 0xFFFF0000;
				AdccRegs.ADCINLTRIM4 &= 0xFFFF0000;
				AdccRegs.ADCINLTRIM5 &= 0xFFFF0000;
			}
		break;
		case ADC_ADCD:
			AdcdRegs.ADCCTL2.bit.RESOLUTION = resolution;
			AdcdRegs.ADCCTL2.bit.SIGNALMODE = signalmode;
			AdcdRegs.ADCOFFTRIM.all = adcOffsetT

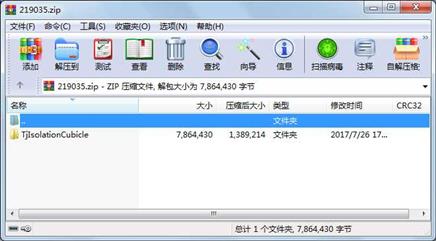

 属性            大小     日期    时间   名称
----------- ---------  ---------- -----  ----
     目录           0  2017-07-26 17:27  TjIsolationCubicle\
     文件         560  2017-07-26 17:30  TjIsolationCubicle\.ccsproject
     文件       23817  2017-07-29 13:05  TjIsolationCubicle\.cproject
     目录           0  2017-07-26 17:27  TjIsolationCubicle\.launches\
     文件       10415  2017-07-29 19:24  TjIsolationCubicle\.launches\TjIsolationCubicle.launch
     文件         848  2017-07-13 08:16  TjIsolationCubicle\.project
     目录           0  2017-07-13 08:22  TjIsolationCubicle\.settings\
     文件          62  2017-07-13 08:16  TjIsolationCubicle\.settings\org.eclipse.cdt.codan.core.prefs
     文件         123  2017-07-13 08:16  TjIsolationCubicle\.settings\org.eclipse.cdt.debug.core.prefs
     文件         477  2017-07-13 08:22  TjIsolationCubicle\.settings\org.eclipse.core.resources.prefs
     文件        6743  2017-07-31 14:32  TjIsolationCubicle\28377S_FLASH_lnk.cmd
     目录           0  2017-07-31 14:22  TjIsolationCubicle\Debug\
     文件       68997  2017-07-31 14:22  TjIsolationCubicle\Debug\TjIsolationCubicle.map
     文件      474100  2017-07-31 14:22  TjIsolationCubicle\Debug\TjIsolationCubicle.out
     文件      315014  2017-07-31 14:22  TjIsolationCubicle\Debug\TjIsolationCubicle_linkInfo.xml
     文件        1338  2017-07-31 14:21  TjIsolationCubicle\Debug\ccsObjs.opt
     目录           0  2017-07-13 08:22  TjIsolationCubicle\Debug\lib\
     文件         289  2017-07-29 13:06  TjIsolationCubicle\Debug\lib\subdir_rules.mk
     文件         458  2017-07-29 13:06  TjIsolationCubicle\Debug\lib\subdir_vars.mk
     文件        7429  2017-07-31 14:21  TjIsolationCubicle\Debug\makefile
     文件         346  2017-07-29 13:06  TjIsolationCubicle\Debug\objects.mk
     目录           0  2017-07-29 13:34  TjIsolationCubicle\Debug\source\
     文件       28187  2017-07-29 13:34  TjIsolationCubicle\Debug\source\F2837xS_Adc.obj
     文件        7379  2017-07-29 13:34  TjIsolationCubicle\Debug\source\F2837xS_Adc.pp
     文件        1572  2017-07-29 13:34  TjIsolationCubicle\Debug\source\F2837xS_CodeStartBranch.obj
     文件        5889  2017-07-29 13:34  TjIsolationCubicle\Debug\source\F2837xS_CpuTimers.obj
     文件        7721  2017-07-29 13:34  TjIsolationCubicle\Debug\source\F2837xS_CpuTimers.pp
     文件        1202  2017-07-29 13:34  TjIsolationCubicle\Debug\source\F2837xS_DBGIER.obj
     文件       50529  2017-07-29 13:34  TjIsolationCubicle\Debug\source\F2837xS_DefaultISR.obj
     文件        7778  2017-07-29 13:34  TjIsolationCubicle\Debug\source\F2837xS_DefaultISR.pp
     文件       55881  2017-07-29 13:34  TjIsolationCubicle\Debug\source\F2837xS_Dma.obj
............此处省略198个文件信息
