资源简介

包含TEA5767的完整工程文件,基于STM32F767的HAL库,还有代码资料,芯片的资料以及自己开发时做的关于寄存器组织的笔记

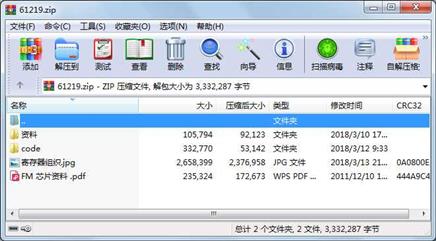

资源截图

代码片段和文件信息

#include “FM.h“

//外部变量,保存寄存器写入读出的值
extern unsigned char radio_read_data[5];
extern unsigned char radio_write_data[5];



//读 TEA5767 状态并转换成频率
unsigned long radio_read(void)
{
unsigned char temp_ltemp_h;
unsigned long pll=0;
unsigned long frequency;

HAL_I2C_Master_Receive(&hi2c20xc1radio_read_data5500);

temp_l=radio_read_data[1];
temp_h=radio_read_data[0];
temp_h&=0x3f;

pll=temp_h*256+temp_l;

if (radio_write_data[2]&0x10)
frequency=(unsigned long)((float)(pll)*(float)8.192-225); //频率单位:KHz
else
frequency=(unsigned long)((float)(pll)*(float)8.192+225); //频率单位:KHz

printf(“frequency:%ld\r\n“frequency);

return frequency;
}


//手动设置频率mode=1+0.1MHz; mode=0:-0.1MHz 不用考虑 TEA5767 用于搜台的相关位:SMSUD
void search(uint8_t mode)
{
unsigned long pll=0;
unsigned long frequency;

frequency = radio_read();

if(mode)
{
frequency+=200;
if(frequency>max_freq)
frequency=min_freq;
}
else
{
frequency-=200;
if(frequency frequency=max_freq;
}

if (radio_write_data[2]&0x10)
pll=(unsigned long)((float)((frequency+225)*4)/(float)32.768); //频率单位:k
else
pll=(unsigned long)((float)((frequency-225)*4)/(float)32.768); //频率单位:k

radio_write_data[0]=pll/256;
radio_write_data[1]=pll%256;
radio_write_data[2]=0x20;
radio_write_data[3]=0x11;
radio_write_data[4]=0x00;

HAL_I2C_Master_Transmit(&hi2c20xc0radio_write_data5500);

}


//自动搜台mode=1频率增加搜台; mode=“0:频率减小搜台“.
void Auto_Search(unsigned char mode)
{
unsigned long pll=0;
unsigned long frequency;

frequency = radio_read();

if (radio_write_data[2]&0x10)
pll=(unsigned long)((float)((frequency+225)*4)/(float)32.768); //频率单位:k
else
pll=(unsigned long)((float)((frequency-225)*4)/(float)32.768); //频率单位:k

if(mode)
{
radio_write_data[2] = 0xb1;
if(pll > max_pll)
{
pll = min_pll;
}
}
else
{
radio_write_data[2] = 0x41;
if(pll < min_pll)
{
pll = max_pll;
}
}

radio_write_data[0] = pll/256+0x40;
radio_write_data[1] = pll%256;
radio_write_data[3] = 0x11;
radio_write_data[4] = 0x40;

HAL_I2C_Master_Transmit(&hi2c20xc0radio_write_data5500);


while(!(radio_read_data[0]&0x80)) //RF电台就绪标志
{
frequency = radio_read();


}
