奇异谱分析MATLAB代码
代码片段和文件信息
function [drvr]=ssa(x1L)
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% -----------------------------------------------------------------
% Author: Francisco Javier Alonso Sanchez e-mail:fjas@unex.es
% Departament of Electronics and Electromecanical Engineering
% Industrial Engineering School
% University of Extremadura
% Badajoz
% Spain
% -----------------------------------------------------------------
%
% SSA generates a trayectory matrix X from the original series x1
% by sliding a window of length L. The trayectory matrix is aproximated
% using Singular Value Decomposition. The last step reconstructs
% the series from the aproximated trayectory matrix. The SSA applications
% include smoothing filtering and trend extraction.
% The algorithm used is described in detail in: Golyandina N. Nekrutkin
% V. Zhigljavsky A. 2001. Analisys of Time Series Structure - SSA and
% Related Techniques. Chapman & Hall/CR.
% x1 Original time series (column vector form)
% L Window length
% y Reconstructed time series 重构时间序列
% r Residual time series r=x1-y 剩余时间序列
% vr Relative value of the norm of the approximated trajectory matrix with respect
% to the original trajectory matrix 相对于原始轨迹矩阵的近似轨道矩阵范数的相对值
% The program output is the Singular Spectrum of x1 (must be a column vector)
% using a window length L. You must choose the components be used to reconstruct
%the series in the form [i1i2:ik...iL] based on the Singular Spectrum appearance.
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% Step1 : Build trayectory matrix
N=length(x1);
if L>N/2;L=N-L;end
K=N-L+1;
X=zeros(LK);
for i=1:K
X(1:Li)=x1(i:L+i-1);
end
% Step 2: SVD奇异值分解
S=X*X‘; %
[Uautoval]=eig(S);%eig返回矩阵的特征值和特征向量,U是特征向量,autoval是特征值
[di]=sort(-diag(autoval));
%x= diag(vk)以向量v的元素作为矩阵X的第k条对角线元素,当k=0时,v为X的主对角线;当k>0时,v为上方第k条对角线;当k<0时,v为下方第k条对角线。
%sort(A,dim)表示对A中的各行元素升序排列,sort(A)默认的是升序,d是排序好的向量,i是向量d中每一项对应于A中项的索引
d=-d;
U=U(:i);
sev=sum(d); %特征值的和
plot((d./sev)*100)hold onplot((d./sev)*100‘rx‘);
title(‘Singular Spectrum‘);xlabel(‘Eigenvalue Number‘);ylabel(‘Eigenvalue (% Norm of trajectory matrix retained)‘) %轨迹矩阵的范数
V=(X‘)*U;
rc=U*V‘;
%奇异值分解S=U*D*V
% Step 3: Grouping
I=input(‘Choose the agrupation of components to reconstruct the series in the form I=[i1i2:ik...iL] ‘)
Vt=V‘;
rca=U(:I)*Vt(I:);
% Step 4: Reconstruction
y=zeros(N1);
Lp=min(LK);
Kp=max(LK);
for k=0:Lp-2
for m=1:k+1;
y(k+1)=y(k+1)+(1/(k+1))*rca(mk-m+2);
end
end
for k=Lp-1:Kp-1
for m=1:Lp;
y(k+1)=y(k+1)+(1/(Lp))*rca(mk-m+2);
end
end
for k=Kp:N
for m=k-Kp+2:N-Kp+1;
y(k+1)=y(k+1)+(1/(N-k))*rca(mk-m+2);
end
end
figure;subplot(21

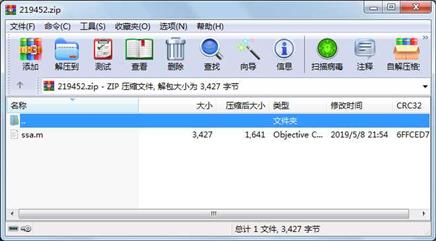

属性 大小 日期 时间 名称
----------- --------- ---------- ----- ----
文件 3427 2019-05-08 21:54 ssa.m
