资源简介
中南大学本科的摄影测量与遥感课程设计,空间前交-后交程序设计,附有详细的代码。
代码片段和文件信息
#include “stdio.h“
#include “math.h“
#include “iostream.h“
#define PI 3.1415926
#define N 4
//求矩阵a的转置矩阵b,a为m行、n列
void transpose(double *a double *b int m int n);
//矩阵a乘以矩阵b,结果存储在c中,a为m×n大小,b为n×l大小
void multiply(double *a double *b double *c int m int n int l);
//求矩阵a的逆
int inverse1(double *a int n);
//输出m行、n列的矩阵a
void shuchu(double *a int m int n);
//求矩阵a与b的差值矩阵,a、b、c大小均为m×n
void subtrat(double *a double *b double *c int m int n);
double R1[3][3]={0.0}R2[3][3]={0.0};
double L[8][1]={0.0};
double A[8][6]={0.0}AT[6][8]={0.0}ATA[6][6]={0.0}AX[8][1]={0.0}
ATL[6][1]={0.0}M[6][6]={0.0}B[6][8]={0.0};
double AM[8][1]={0.0}X[6][1]={0.0}V[8][1]={0.0}VT[1][8]={0.0}VTV[1][1]={0.0};
double xy1[4][2]={0.0}xy2[4][2]={0.0};
double _X[4][1]={0.0} _Y[4][1]={0.0} _Z[4][1]={0.0};
double M01M02;
double W[6][1]={123456};
int n1(0)n2(0);
void main()
{
printf(“ 空间后交—前交程序 \n“);
printf(“ ——测绘0902班0405090307 张超 \n“);
FILE *fp = NULL;
FILE *fp1 = NULL;
if((fp=fopen(“image.txt““r“)) == NULL)
{
printf(“Open file error!“);
return;
}
if((fp1=fopen(“ground.txt““r“)) == NULL)
{
printf(“Open file error!“);
return;
}
//像点坐标和地面点坐标
double imagecontrol[4][4]={0.0};
double groundcontrol[4][3]={0.0};
double f=0.150000;
long ijr;
for(i=0; i<4; i++)
{
for(j=0; j<4; j++)
{
fscanf(fp “%lf“ &imagecontrol[i][j]);
imagecontrol[i][j] /= 1000.0;
}
for(r=0; r<3; r++)
{
fscanf(fp1 “%lf“ &groundcontrol[i][r]);
}
}
fclose(fp);
fclose(fp1);
double Ix1Iy1Gx1Gy1;
double m1=0.0;
for(i=0;i<3;i++)
{
for(j=i+1;j<4;j++)
{
Ix1=imagecontrol[i][0]-imagecontrol[j][0];
Iy1=imagecontrol[i][1]-imagecontrol[j][1];
Gx1=groundcontrol[i][0]-groundcontrol[j][0];
Gy1=groundcontrol[i][1]-groundcontrol[j][1];
m1+=sqrt((pow(Gx12)+pow(Gy12))/(pow(Ix12)+pow(Iy12)));
}
}
m1/=6;
// shuchu( &imagecontrol[0][0] 4 4);
/****************************************************************************************************************/
/****************************************************************************************************************/
/****************************************************************************************************************/
printf(“\n-----------------------------左片外方位元素的计算---------------------------\n“);
double Zs1(0.0)Xs1(0.0)Ys1(0.0)p1(0.0)w1(0.0)k1(0.0);
//1.计算摄影中心XsYs的初始近似值
printf(“\n 摄影比例尺m1=%lf\n“m1);
for(i=0;i<4;i++)
{
Xs1+=groundcontrol[i][0];
Ys1+=groundcontrol[i][1];
Zs1+=groundcontrol[i][2];
}
Xs1/=4.0;
Ys1/=4.0;
Zs1/=4.0;
Zs1+=m1*f;
//计算旋转矩阵R
do
{
R1[0][0]=cos(p1)*cos(k1)-sin(p1)*sin(w1)*sin(k1);
R1[0][1]=(-1)

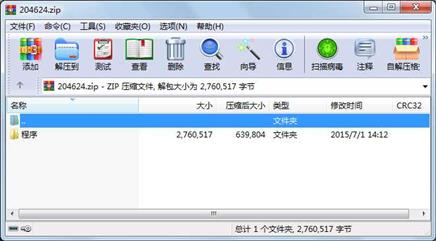

属性 大小 日期 时间 名称
----------- --------- ---------- ----- ----
目录 0 2015-07-01 14:12 程序\
文件 20225 2011-11-15 22:03 程序\001.cpp
目录 0 2015-07-01 09:47 程序\Debug\
文件 772 2015-07-01 09:47 程序\Debug\cl.command.1.tlog
文件 1318 2015-07-01 09:47 程序\Debug\CL.read.1.tlog
文件 308 2015-07-01 09:47 程序\Debug\CL.write.1.tlog
文件 46006 2011-11-14 10:34 程序\Debug\HFJH.obj
文件 278593 2012-05-26 10:59 程序\Debug\SY0.exe
文件 321100 2012-05-26 10:59 程序\Debug\SY0.ilk
文件 146 2015-07-01 09:47 程序\Debug\SY0.lastbuildstate
文件 1182 2015-07-01 09:47 程序\Debug\SY0.log
文件 0 2015-07-01 09:47 程序\Debug\SY0.unsuccessfulbuild
文件 19456 2015-07-01 09:47 程序\Debug\vc100.idb
文件 45056 2015-07-01 09:47 程序\Debug\vc100.pdb
文件 41984 2012-05-26 10:59 程序\Debug\vc60.idb
文件 61440 2012-05-26 10:59 程序\Debug\vc60.pdb
文件 116 2011-10-26 16:52 程序\ground.txt
文件 128 2011-10-26 16:56 程序\image.txt
文件 153 2011-11-14 21:23 程序\image1.txt
文件 143 2011-11-14 21:23 程序\image2.txt
目录 0 2015-07-01 08:30 程序\ipch\
目录 0 2015-07-01 08:30 程序\ipch\sy0-a4a86840\
文件 4248 2011-10-30 13:54 程序\SY0.dsp
文件 529 2011-10-30 13:51 程序\SY0.dsw
文件 58368 2012-05-26 11:01 程序\SY0.ncb
文件 48640 2012-05-26 11:01 程序\SY0.opt
文件 880 2012-05-26 10:59 程序\SY0.plg
文件 1789952 2015-07-01 14:12 程序\SY0.sdf
文件 872 2015-07-01 09:47 程序\SY0.sln
文件 11776 2015-07-01 14:12 程序\SY0.suo
文件 6084 2015-07-01 08:29 程序\SY0.vcxproj
............此处省略2个文件信息
